CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-LB-63B Stroke 75
#Grup produk P103121976
Sebelum PPN:
Rp3.899.900 - Rp6.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

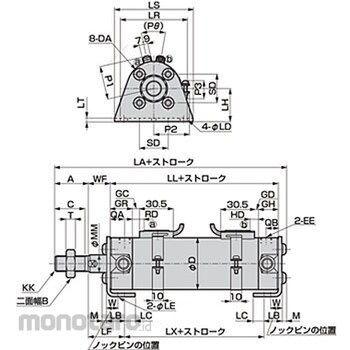

Simple design, overall length is short, easy to install work Dimension LX (mm)=55; Dimension DA=M10; Dimension LC (mm)=13; Dimension D (mm)=72; Dimension LF (mm)=40.5; Dimension T (mm)=11; Dimension WF (mm)=23; Dimension EE=Rc1 / 4; Dimension QB (mm)=12; Dimension GH (mm)=22; Dimension LB (mm)=22; Dimension A (mm)=35; Dimension LA (mm)=157.5; Dimension LL (mm)=90; Dimension LH (mm)=45; Dimension LE (mm)=5; Dimension GR (mm)=25; Dimension SD (mm)=38; Dimension C (mm)=32; Dimension LT (mm)=4.5; Dimension MM (mm)=20; Dimension B (mm)=27; Dimension W (mm)=17.5; Dimension LS (mm)=106; Dimension LR (mm)=82; Dimension QA (mm)=15; Dimension M (mm)=5; Dimension KK=M18 x 1.5; Dimension LD (mm)=11
