CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-LB-63B Stroke 125
#Grup produk P103121903
Sebelum PPN:
Rp4.199.900 - Rp6.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

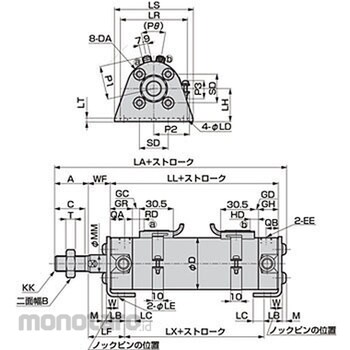

Simple design, overall length is short, easy to install work Dimension QA (mm)=15; Dimension LL (mm)=90; Dimension LX (mm)=55; Dimension LD (mm)=11; Dimension SD (mm)=38; Dimension EE=Rc1 / 4; Dimension W (mm)=17.5; Dimension A (mm)=35; Dimension D (mm)=72; Dimension B (mm)=27; Dimension C (mm)=32; Dimension DA=M10; Dimension LB (mm)=22; Dimension LE (mm)=5; Dimension WF (mm)=23; Dimension KK=M18 x 1.5; Dimension GH (mm)=22; Dimension LS (mm)=106; Dimension LA (mm)=157.5; Dimension QB (mm)=12; Dimension M (mm)=5; Dimension T (mm)=11; Dimension LR (mm)=82; Dimension LT (mm)=4.5; Dimension LH (mm)=45; Dimension GR (mm)=25; Dimension LC (mm)=13; Dimension LF (mm)=40.5; Dimension MM (mm)=20
