CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-LB-50D Stroke 125
#Grup produk P103121815
Sebelum PPN:
Rp3.099.900 - Rp5.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

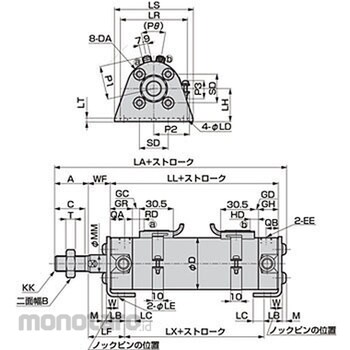

Simple design, overall length is short, easy to install work Dimension GR (mm)=25; Dimension EE=Rc1 / 4; Dimension LF (mm)=40.5; Dimension A (mm)=35; Dimension LL (mm)=90; Dimension SD (mm)=32; Dimension KK=M18 x 1.5; Dimension QB (mm)=12; Dimension DA=M8; Dimension LR (mm)=66; Dimension MM (mm)=20; Dimension LB (mm)=22; Dimension LS (mm)=86; Dimension W (mm)=17.5; Dimension M (mm)=5; Dimension QA (mm)=15; Dimension LX (mm)=55; Dimension LH (mm)=40; Dimension C (mm)=32; Dimension GH (mm)=22; Dimension D (mm)=58; Dimension LE (mm)=5; Dimension B (mm)=27; Dimension LD (mm)=9; Dimension LT (mm)=4.5; Dimension WF (mm)=23; Dimension LA (mm)=157.5; Dimension T (mm)=11; Dimension LC (mm)=11
