CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-LB-50B Stroke 300
#Grup produk P103121772
Sebelum PPN:
Rp4.299.900 - Rp6.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

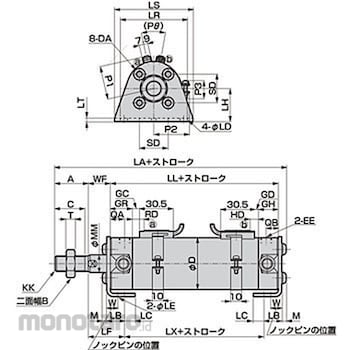

Simple design, overall length is short, easy to install work Dimension D (mm)=58; Dimension SD (mm)=32; Dimension LS (mm)=86; Dimension LC (mm)=11; Dimension LT (mm)=4.5; Dimension LX (mm)=55; Dimension EE=Rc1 / 4; Dimension LD (mm)=9; Dimension LH (mm)=40; Dimension LB (mm)=22; Dimension T (mm)=11; Dimension W (mm)=17.5; Dimension WF (mm)=23; Dimension LL (mm)=90; Dimension LF (mm)=40.5; Dimension C (mm)=32; Dimension M (mm)=5; Dimension B (mm)=27; Dimension LA (mm)=157.5; Dimension QB (mm)=12; Dimension GH (mm)=22; Dimension MM (mm)=20; Dimension LE (mm)=5; Dimension QA (mm)=15; Dimension A (mm)=35; Dimension DA=M8; Dimension KK=M18 x 1.5; Dimension GR (mm)=25; Dimension LR (mm)=66
