CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-LB-50B Stroke 250
#Grup produk P103121763
Sebelum PPN:
Rp4.099.900 - Rp6.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

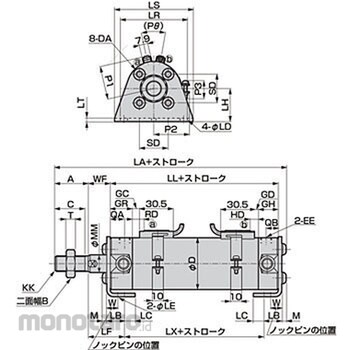

Simple design, overall length is short, easy to install work Dimension GR (mm)=25; Dimension QB (mm)=12; Dimension W (mm)=17.5; Dimension LA (mm)=157.5; Dimension LD (mm)=9; Dimension B (mm)=27; Dimension C (mm)=32; Dimension LS (mm)=86; Dimension LF (mm)=40.5; Dimension KK=M18 x 1.5; Dimension LR (mm)=66; Dimension LX (mm)=55; Dimension DA=M8; Dimension SD (mm)=32; Dimension M (mm)=5; Dimension LH (mm)=40; Dimension LB (mm)=22; Dimension LC (mm)=11; Dimension WF (mm)=23; Dimension D (mm)=58; Dimension LE (mm)=5; Dimension GH (mm)=22; Dimension LL (mm)=90; Dimension T (mm)=11; Dimension LT (mm)=4.5; Dimension EE=Rc1 / 4; Dimension MM (mm)=20; Dimension QA (mm)=15; Dimension A (mm)=35
