CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-LB-50B Stroke 200
#Grup produk P103121745
Spesifikasi
| Allowable Energy Absorption (J) | 8 |
|---|---|
| Air cushion | 13.4 mm (effective length) |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Connection aperture | Rc1 / 4 |
| Accessories | Niyama knuckle (pin and retaining ring attached) |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Cushion | With air cushion on both sides |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.05 |
| Mounting Method | -(switch) |
| Operating Piston Speed (mm/s) | 30 to 1000 (Please use within the allowable energy absorption) |
| Operation Method | Backward movement |
| Stroke | 200 |
| Stroke length tolerance | 2.3 (to 1000) |
| Tube Inner Diameter (mm) | 50 |
| Working Fluid | Compressed air |
| format | Axial foot shape |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

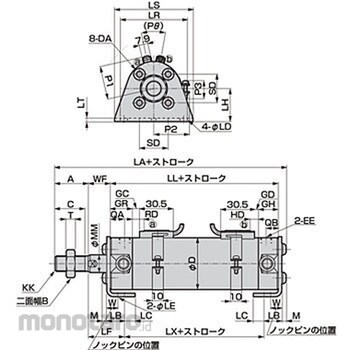

Simple design, overall length is short, easy to install work Dimension LR (mm)=66; Dimension DA=M8; Dimension LA (mm)=157.5; Dimension QA (mm)=15; Dimension GH (mm)=22; Dimension LX (mm)=55; Dimension B (mm)=27; Dimension M (mm)=5; Dimension T (mm)=11; Dimension QB (mm)=12; Dimension LF (mm)=40.5; Dimension MM (mm)=20; Dimension W (mm)=17.5; Dimension GR (mm)=25; Dimension LS (mm)=86; Dimension LT (mm)=4.5; Dimension LE (mm)=5; Dimension LL (mm)=90; Dimension LD (mm)=9; Dimension LB (mm)=22; Dimension C (mm)=32; Dimension WF (mm)=23; Dimension D (mm)=58; Dimension A (mm)=35; Dimension SD (mm)=32; Dimension KK=M18 x 1.5; Dimension EE=Rc1 / 4; Dimension LH (mm)=40; Dimension LC (mm)=11
