CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-40B Stroke 150
#Grup produk P103121675
Sebelum PPN:
Rp2.599.900 - Rp5.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

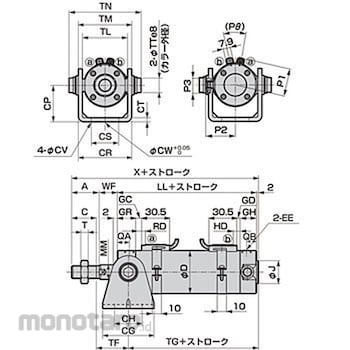

Simple design, overall length is short, easy to install work Dimension TG (mm)=68; Dimension CH (mm)=30; Dimension MM (mm)=16; Dimension KK=M14 x 1.5; Dimension B (mm)=22; Dimension EE=Rc1 / 8; Dimension CS (mm)=30; Dimension TT (mm)=14; Dimension C (mm)=27; Dimension GH (mm)=19; Dimension QA (mm)=13; Dimension CV (mm)=6.6; Dimension T (mm)=8; Dimension LL (mm)=78; Dimension D (mm)=47; Dimension A (mm)=30; Dimension GR (mm)=20; Dimension TN (mm)=81.1; Dimension X (mm)=130; Dimension TL (mm)=49; Dimension CT (mm)=4.5; Dimension WF (mm)=20; Dimension TF (mm)=32; Dimension CR (mm)=58.4; Dimension J (mm)=25; Dimension CW (mm)=10; Dimension CP (mm)=40; Dimension QB (mm)=12; Dimension CG (mm)=56; Dimension TM (mm)=65.9
