CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-32D Stroke 25

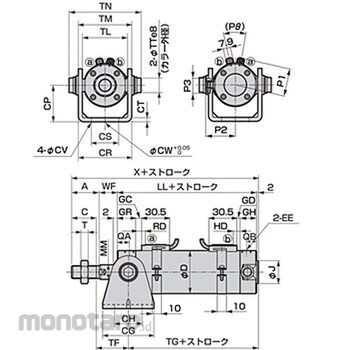

Simple design, overall length is short, easy to install work Dimension KK=M10 x 1.25; Dimension TN (mm)=67.7; Dimension A (mm)=22; Dimension EE=Rc1 / 8; Dimension J (mm)=18; Dimension QA (mm)=12; Dimension TF (mm)=29; Dimension CT (mm)=4.5; Dimension WF (mm)=18; Dimension TT (mm)=12; Dimension T (mm)=6; Dimension CS (mm)=22; Dimension C (mm)=19.5; Dimension CV (mm)=6.6; Dimension MM (mm)=12; Dimension GR (mm)=19; Dimension D (mm)=38; Dimension CG (mm)=48; Dimension B (mm)=17; Dimension CH (mm)=28; Dimension X (mm)=113; Dimension TM (mm)=54.5; Dimension TG (mm)=62; Dimension CW (mm)=10; Dimension CR (mm)=49.4; Dimension LL (mm)=71; Dimension GH (mm)=17; Dimension TL (mm)=40; Dimension CP (mm)=35; Dimension QB (mm)=10
