CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-32B Stroke 25
#Grup produk P103121514
Sebelum PPN:
Rp1.699.900 - Rp3.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

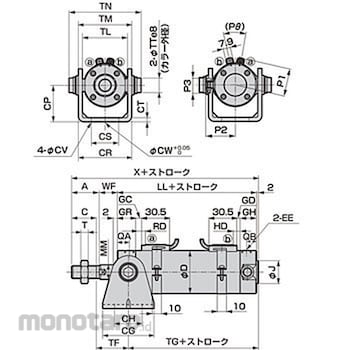

Simple design, overall length is short, easy to install work Dimension EE=Rc1 / 8; Dimension A (mm)=22; Dimension QA (mm)=12; Dimension TT (mm)=12; Dimension CW (mm)=10; Dimension GR (mm)=19; Dimension B (mm)=17; Dimension CT (mm)=4.5; Dimension X (mm)=113; Dimension CG (mm)=48; Dimension T (mm)=6; Dimension CH (mm)=28; Dimension CS (mm)=22; Dimension TF (mm)=29; Dimension C (mm)=19.5; Dimension QB (mm)=10; Dimension CP (mm)=35; Dimension CR (mm)=49.4; Dimension TL (mm)=40; Dimension TM (mm)=54.5; Dimension D (mm)=38; Dimension LL (mm)=71; Dimension GH (mm)=17; Dimension MM (mm)=12; Dimension WF (mm)=18; Dimension TN (mm)=67.7; Dimension KK=M10 x 1.25; Dimension J (mm)=18; Dimension TG (mm)=62; Dimension CV (mm)=6.6
