CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-32B Stroke 125
#Grup produk P103121480
Sebelum PPN:
Rp1.899.900 - Rp4.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

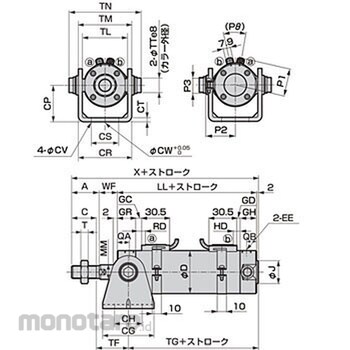

Simple design, overall length is short, easy to install work Dimension CP (mm)=35; Dimension QB (mm)=10; Dimension CR (mm)=49.4; Dimension J (mm)=18; Dimension CG (mm)=48; Dimension TG (mm)=62; Dimension T (mm)=6; Dimension TF (mm)=29; Dimension GH (mm)=17; Dimension TM (mm)=54.5; Dimension CW (mm)=10; Dimension TN (mm)=67.7; Dimension CH (mm)=28; Dimension KK=M10 x 1.25; Dimension A (mm)=22; Dimension B (mm)=17; Dimension C (mm)=19.5; Dimension TL (mm)=40; Dimension CV (mm)=6.6; Dimension QA (mm)=12; Dimension EE=Rc1 / 8; Dimension LL (mm)=71; Dimension CS (mm)=22; Dimension TT (mm)=12; Dimension CT (mm)=4.5; Dimension GR (mm)=19; Dimension MM (mm)=12; Dimension X (mm)=113; Dimension WF (mm)=18; Dimension D (mm)=38
