CKD Super Micro Cylinder SCM Basic Single Rod Base SCM-CA-63B Stroke 250
#Grup produk P103121435
Sebelum PPN:
Rp4.899.900 - Rp7.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

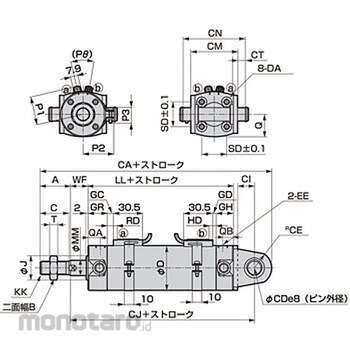

Dimension GD (mm)=9; Dimension GH (mm)=22; Dimension KK=M18 x 1.5; Dimension CW (mm)=20; Dimension QB (mm)=12; Dimension CJ (mm)=142.5; Dimension P=(20 degrees) (theta); Dimension CG (mm)=74; Dimension CT (mm)=8; Dimension CR (mm)=90.4; Dimension C (mm)=32; Dimension CA (mm)=199.5; Dimension CD (mm)=18; Dimension CE (mm)=22; Dimension GC (mm)=7; Dimension DA=M10; Dimension Q (mm)=36; Dimension P1 (mm)=42.7; Dimension HD (mm)=13; Dimension CQ (mm)=105.4; Dimension QA (mm)=15; Dimension J (mm)=32; Dimension CM (mm)=74; Dimension GR (mm)=25; Dimension CP (mm)=60; Dimension CH (mm)=46; Dimension EE=Rc1 / 4; Dimension P2 (mm)=44.4; Dimension CV (mm)=11; Dimension A (mm)=35; Dimension MM (mm)=20; Dimension SD (mm)=38; Dimension T (mm)=11; Dimension WF (mm)=23; Dimension B (mm)=27; Dimension CS (mm)=46; Dimension CI (mm)=22; Dimension LL (mm)=90; Dimension CO (mm)=96; Dimension D (mm)=72; Dimension CK (mm)=214.5; Dimension CN (mm)=97.8; Dimension RD (mm)=11
