CKD Super Micro Cylinder SCM Basic Single Rod Base SCM-CA-63B Stroke 150

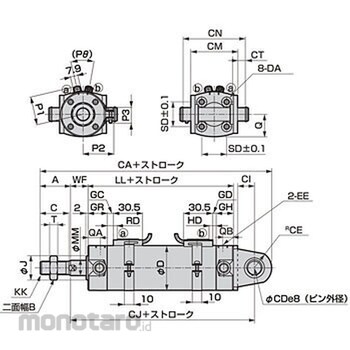

Dimension P=(20 degrees) (theta); Dimension KK=M18 x 1.5; Dimension CQ (mm)=105.4; Dimension J (mm)=32; Dimension QB (mm)=12; Dimension RD (mm)=11; Dimension CV (mm)=11; Dimension WF (mm)=23; Dimension CK (mm)=214.5; Dimension SD (mm)=38; Dimension D (mm)=72; Dimension QA (mm)=15; Dimension LL (mm)=90; Dimension HD (mm)=13; Dimension GR (mm)=25; Dimension GD (mm)=9; Dimension Q (mm)=36; Dimension P2 (mm)=44.4; Dimension EE=Rc1 / 4; Dimension CG (mm)=74; Dimension A (mm)=35; Dimension CR (mm)=90.4; Dimension CP (mm)=60; Dimension CO (mm)=96; Dimension CI (mm)=22; Dimension CT (mm)=8; Dimension CH (mm)=46; Dimension T (mm)=11; Dimension CM (mm)=74; Dimension CN (mm)=97.8; Dimension CE (mm)=22; Dimension GC (mm)=7; Dimension P1 (mm)=42.7; Dimension MM (mm)=20; Dimension CD (mm)=18; Dimension DA=M10; Dimension GH (mm)=22; Dimension CJ (mm)=142.5; Dimension B (mm)=27; Dimension CA (mm)=199.5; Dimension C (mm)=32; Dimension CW (mm)=20; Dimension CS (mm)=46
