CKD Super Micro Cylinder SCM Basic Single Rod Base SCM-CA-50D Stroke 300

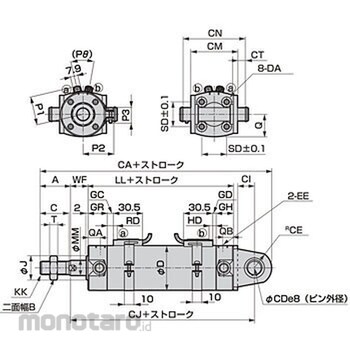

Dimension CA (mm)=192.5; Dimension CM (mm)=60; Dimension EE=Rc1 / 4; Dimension GD (mm)=9; Dimension CP (mm)=50; Dimension T (mm)=11; Dimension CD (mm)=16; Dimension DA=M8; Dimension CE (mm)=20; Dimension LL (mm)=90; Dimension CO (mm)=79; Dimension GH (mm)=22; Dimension CH (mm)=36; Dimension GC (mm)=7; Dimension RD (mm)=11; Dimension Q (mm)=29; Dimension MM (mm)=20; Dimension SD (mm)=32; Dimension CJ (mm)=137.5; Dimension P=(22 degree) (theta); Dimension C (mm)=32; Dimension KK=M18 x 1.5; Dimension A (mm)=35; Dimension D (mm)=58; Dimension WF (mm)=23; Dimension QA (mm)=15; Dimension QB (mm)=12; Dimension CV (mm)=9; Dimension CN (mm)=79.6; Dimension CR (mm)=72.4; Dimension CG (mm)=64; Dimension CS (mm)=36; Dimension CT (mm)=6; Dimension CI (mm)=19; Dimension CW (mm)=20; Dimension GR (mm)=25; Dimension P2 (mm)=37.4; Dimension CQ (mm)=86; Dimension HD (mm)=13; Dimension B (mm)=27; Dimension CK (mm)=204.5; Dimension P1 (mm)=35.7; Dimension J (mm)=30
