CKD Super Micro Cylinder SCM Basic Single Rod Base SCM-CA-50B Stroke 250
#Grup produk P103121286
Sebelum PPN:
Rp4.199.900 - Rp6.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

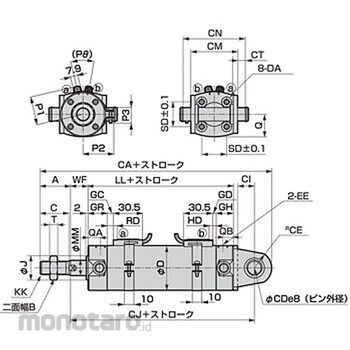

Dimension GH (mm)=22; Dimension CI (mm)=19; Dimension P=(22 degree) (theta); Dimension P2 (mm)=37.4; Dimension B (mm)=27; Dimension KK=M18 x 1.5; Dimension CJ (mm)=137.5; Dimension CG (mm)=64; Dimension CS (mm)=36; Dimension CA (mm)=192.5; Dimension CP (mm)=50; Dimension Q (mm)=29; Dimension T (mm)=11; Dimension CH (mm)=36; Dimension WF (mm)=23; Dimension CK (mm)=204.5; Dimension MM (mm)=20; Dimension CE (mm)=20; Dimension CD (mm)=16; Dimension EE=Rc1 / 4; Dimension DA=M8; Dimension A (mm)=35; Dimension C (mm)=32; Dimension GR (mm)=25; Dimension D (mm)=58; Dimension CM (mm)=60; Dimension CN (mm)=79.6; Dimension GD (mm)=9; Dimension RD (mm)=11; Dimension P1 (mm)=35.7; Dimension CO (mm)=79; Dimension CR (mm)=72.4; Dimension QB (mm)=12; Dimension SD (mm)=32; Dimension HD (mm)=13; Dimension LL (mm)=90; Dimension CQ (mm)=86; Dimension GC (mm)=7; Dimension J (mm)=30; Dimension CT (mm)=6; Dimension QA (mm)=15; Dimension CV (mm)=9; Dimension CW (mm)=20
