CKD Super Micro Cylinder SCM Basic Single Rod Base SCM-CA-40D Stroke 100

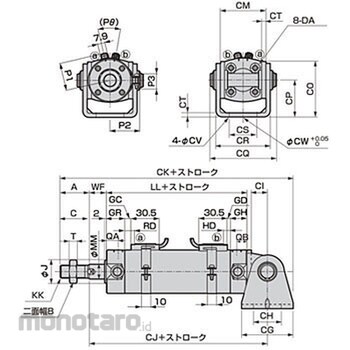

Dimension CA (mm)=167.5; Dimension QA (mm)=13; Dimension DA=M6; Dimension P1 (mm)=30.2; Dimension QB (mm)=12; Dimension WF (mm)=20; Dimension CD (mm)=14; Dimension CW (mm)=10; Dimension CO (mm)=63.5; Dimension SD (mm)=26; Dimension CT (mm)=4.5; Dimension CN (mm)=65; Dimension CM (mm)=49; Dimension A (mm)=30; Dimension MM (mm)=16; Dimension GR (mm)=20; Dimension J (mm)=25; Dimension P2 (mm)=32.1; Dimension CV (mm)=6.6; Dimension CG (mm)=56; Dimension EE=Rc1 / 8; Dimension B (mm)=22; Dimension CK (mm)=177.5; Dimension CP (mm)=40; Dimension T (mm)=8; Dimension P=(26 degree) (theta); Dimension D (mm)=47; Dimension GC (mm)=4.5; Dimension LL (mm)=78; Dimension CE (mm)=18; Dimension CS (mm)=30; Dimension CJ (mm)=119.5; Dimension GH (mm)=19; Dimension CI (mm)=17.5; Dimension KK=M14 x 1.5; Dimension CR (mm)=58.4; Dimension HD (mm)=11.5; Dimension Q (mm)=23.5; Dimension CQ (mm)=71.4; Dimension CH (mm)=30; Dimension C (mm)=27; Dimension GD (mm)=7.5; Dimension RD (mm)=8.5
