CKD Super Micro Cylinder SCM Basic Single Rod Base SCM-CA-32B Stroke 200
#Grup produk P103121019
Sebelum PPN:
Rp2.099.900 - Rp4.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

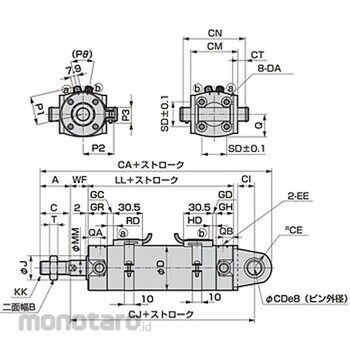

Dimension EE=Rc1 / 8; Dimension CA (mm)=145.5; Dimension CW (mm)=10; Dimension B (mm)=17; Dimension CE (mm)=15; Dimension SD (mm)=20; Dimension GR (mm)=19; Dimension CN (mm)=54; Dimension CS (mm)=22; Dimension QB (mm)=10; Dimension C (mm)=19.5; Dimension T (mm)=6; Dimension CT (mm)=4.5; Dimension CI (mm)=15.5; Dimension D (mm)=38; Dimension J (mm)=18; Dimension HD (mm)=9.5; Dimension P=(30 degrees) (theta); Dimension GD (mm)=5.5; Dimension CP (mm)=35; Dimension CR (mm)=49.4; Dimension CJ (mm)=108.5; Dimension A (mm)=22; Dimension CO (mm)=54; Dimension CQ (mm)=59.4; Dimension WF (mm)=18; Dimension LL (mm)=71; Dimension P2 (mm)=27.6; Dimension DA=M5; Dimension GC (mm)=2.5; Dimension CK (mm)=154.5; Dimension P1 (mm)=25.6; Dimension QA (mm)=12; Dimension CV (mm)=6.6; Dimension MM (mm)=12; Dimension RD (mm)=6.5; Dimension GH (mm)=17; Dimension CH (mm)=28; Dimension CM (mm)=40; Dimension CD (mm)=12; Dimension KK=M10 x 1.25; Dimension Q (mm)=19; Dimension CG (mm)=48
