CKD Super Micro Cylinder SCM Basic Single Rod Base SCM-CA-32B Stroke 100

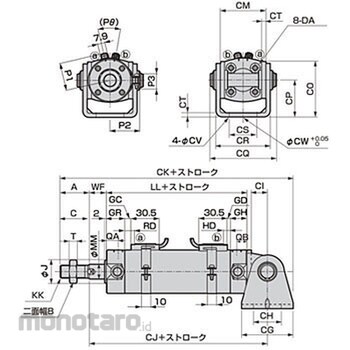

Dimension CA (mm)=145.5; Dimension J (mm)=18; Dimension GC (mm)=2.5; Dimension KK=M10 x 1.25; Dimension CV (mm)=6.6; Dimension HD (mm)=9.5; Dimension CM (mm)=40; Dimension CQ (mm)=59.4; Dimension GH (mm)=17; Dimension A (mm)=22; Dimension P2 (mm)=27.6; Dimension DA=M5; Dimension RD (mm)=6.5; Dimension P1 (mm)=25.6; Dimension D (mm)=38; Dimension CO (mm)=54; Dimension CR (mm)=49.4; Dimension CP (mm)=35; Dimension GD (mm)=5.5; Dimension CN (mm)=54; Dimension WF (mm)=18; Dimension T (mm)=6; Dimension CK (mm)=154.5; Dimension CE (mm)=15; Dimension B (mm)=17; Dimension C (mm)=19.5; Dimension CH (mm)=28; Dimension LL (mm)=71; Dimension CW (mm)=10; Dimension QA (mm)=12; Dimension CI (mm)=15.5; Dimension QB (mm)=10; Dimension SD (mm)=20; Dimension CG (mm)=48; Dimension GR (mm)=19; Dimension CD (mm)=12; Dimension Q (mm)=19; Dimension CS (mm)=22; Dimension CT (mm)=4.5; Dimension CJ (mm)=108.5; Dimension EE=Rc1 / 8; Dimension MM (mm)=12; Dimension P=(30 degrees) (theta)
