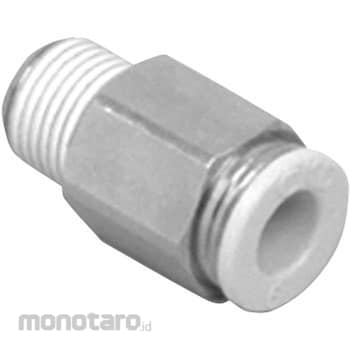

CKD New Joint GW (Fitting) / (One Way Straight)
#Grup produk P103120746
Sebelum PPN:
Rp1.299.900 - Rp1.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Working Pressure (MPa) | 1 |
|---|---|
| Effective Cross Section Area (mm²) | 90 |
| Working Fluid | Compressed air |
| Negative pressure performance (kPa) | -100 |
| Applicable pipe outer diameter ( phi mm) | 16 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension L (mm)=42; Dimension K ( phi mm)=26.5; Dimension B (mm)=28; Dimension M (mm)=R3/8; Dimension H (mm)=24; Dimension A (mm)=12
