CKD Cell Top Cylinder Double Acting JSC 3-T Series (Heat Resistant Type)
#Grup produk P103120542
Spesifikasi
| Switch | None |
|---|---|
| Cushion | None |
| Accuracy (mm) | Stop / +/- 1.0 (at 300mm / s no load) |
| Stroke (mm) | 700 |
| Thread diameter EE | RC1/2 |
| Ambient Temperature (°C) | 5 to 120 |
| Connection aperture (Rc) | (Brake part) 3/8, (Cylinder part) 1/2 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Holding power (N) | 6178 |
| Maximum Working Pressure (MPa) | 1 |
| Maximum stroke (mm) | 800 |
| Minimum Working Pressure (MPa) | (Brake part) 0.3, (Cylinder part) 0.1 |
| Operating Piston Speed (mm/s) | 50 to 1000 (used within the allowable absorbed energy) |
| Operation Method | Double acting, heat resistant type |
| Refueling | No (Please regularly grease the heat resistant grease) |
| Tube Inner Diameter (mm) | 100 |
| Working Fluid | Compressed air |
| format | Head side trunnion type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

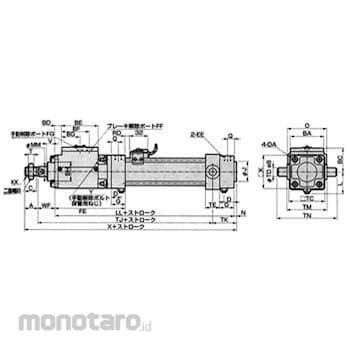

Dimension G (mm)=36; Dimension FF=RC3/8; Dimension DA=M12; Dimension C (mm)=43; Dimension TC (mm)=121; Dimension TK (mm)=65.5; Dimension TN (mm)=205; Dimension TM (mm)=135; Dimension B (mm)=41; Dimension BG (mm)=66; Dimension V (mm)=26; Dimension TJ (mm)=299; Dimension BE (mm)=132; Dimension Q (mm)=18; Dimension TE (mm)=50; Dimension TD (mm)=35; Dimension FG=M16; Dimension MM (mm)=30; Dimension J (mm)=51; Dimension D (mm)=28; Dimension N (mm)=4; Dimension BD (mm)=17.5; Dimension T (mm)=16; Dimension FE (mm)=220.5; Dimension KK (mm)=M26 x 1.5; Dimension BF (mm)=101; Dimension BA (mm)=118; Dimension LL (mm)=312.5; Dimension L (mm)=66-69; Dimension BH (mm)=51; Dimension Y (mm)=M16 depth 13; Dimension A (mm)=45; Dimension BC (mm)=74; Dimension K (mm)=118; Dimension X (mm)=409.5; Dimension WF (mm)=48
Warning
- large energy generated by an external load can not be absorbed. It is recommended that a combination of an external shock absorber. . - You can not detect the position of the head side stroke end.Ulasan Produk
