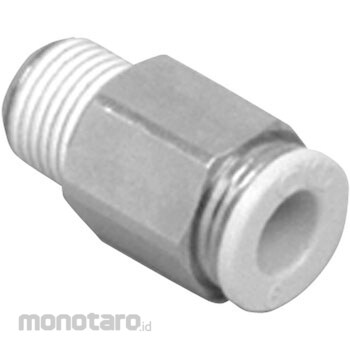

CKD New Joint GW (Fitting) / (Female Straight) Bulk Sales
#Grup produk P103120481
Spesifikasi
| Working Fluid | Compressed air |
|---|---|
| Maximum Working Pressure (MPa) | 1 |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
| Negative pressure performance (kPa) | -100 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension H (mm)=12; Dimension L (mm)=11; Dimension L (mm)=25.5; Dimension B (mm)=16; Dimension M (mm)=Rc1/8; Dimension A (mm)=8
