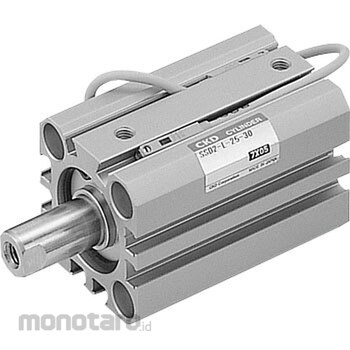

CKD Super Compact Cylinder Double Acting, Single Rod Type SSD2-L-40-5
#Grup produk P103120409
Sebelum PPN:
Rp1.699.900 - Rp2.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection aperture | Rc1 / 8 |
|---|---|
| Allowable Energy Absorption (J) | 0.092 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke (mm) | 5 |
| Stroke length tolerance | +1.0 mm |
| Tube Inner Diameter (mm) | 40 |
| Type | Reverse movement, single rod type, with switch |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension I (mm)=5.5; Dimension WF (mm)=7; Dimension F (mm)=52; Dimension M (mm)=14; Dimension FA (mm)=26.5 (30); Dimension MM (mm)=16; Dimension KA (mm)=M6 depth 11; Dimension O (mm)=5; Dimension G (mm)=57; Dimension N (mm)=40; Dimension D (mm)=8.5 (8); Dimension J (mm)=9 counterbore depth 5.5; Dimension K (mm)=69; Dimension C (mm)=12 (11.5); Dimension EE (mm)=Rc1 / 8; Dimension KK (mm)=M8 depth 13; Dimension H (mm)=15; Dimension A (mm)=46.5; Dimension B (mm)=39.5; Dimension RD (mm)=-; Dimension FB (mm)=27.5
