CKD Super Compact Cylinder Double Acting, Single Rod Type SSD2-L-25-35
#Grup produk P103120287
Sebelum PPN:
Rp1.499.900 - Rp2.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Working Fluid | Compressed air |
|---|---|
| Operation Method | Backward movement |
| Connection aperture | M5 |
| Minimum Working Pressure (MPa) | 0.1 |
| Allowable Energy Absorption (J) | 0.021 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke (mm) | 35 |
| Stroke length tolerance | +1.0 mm |
| Tube Inner Diameter (mm) | 25 |
| Type | Reverse movement, single rod type, with switch |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

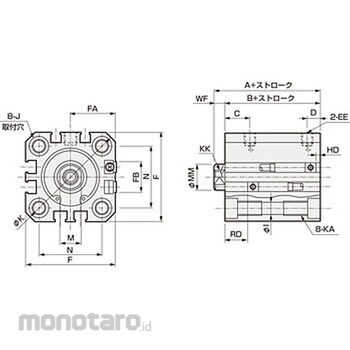

Dimension KA (mm)=M6 depth 11; Dimension RD (mm)=-; Dimension B (mm)=32.5; Dimension N (mm)=28; Dimension D (mm)=6; Dimension FB (mm)=13.5; Dimension M (mm)=10; Dimension KK (mm)=M6 depth 11; Dimension I (mm)=5.5; Dimension K (mm)=51; Dimension J (mm)=9 counterbore depth 5.5; Dimension C (mm)=11; Dimension MM (mm)=12; Dimension A (mm)=37.5; Dimension F (mm)=40; Dimension WF (mm)=5; Dimension FA (mm)=20.5 (24); Dimension EE (mm)=M5
