CKD Super Compact Cylinder Double Acting, Single Rod Type SSD2-L-20-40
#Grup produk P103120232
Sebelum PPN:
Rp1.399.900 - Rp2.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Working Pressure (MPa) | 1 |
|---|---|
| Stroke length tolerance | +1.0 mm |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Minimum Working Pressure (MPa) | 0.1 |
| Allowable Energy Absorption (J) | 0.016 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | M5 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Stroke (mm) | 40 |
| Tube Inner Diameter (mm) | 20 |
| Type | Reverse movement, single rod type, with switch |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

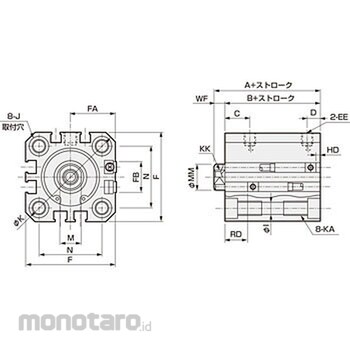

Dimension J (mm)=9 counterbore depth 5.5; Dimension M (mm)=8; Dimension F (mm)=36; Dimension FB (mm)=12.5; Dimension EE (mm)=M5; Dimension N (mm)=25.5; Dimension KK (mm)=M5 depth 7; Dimension D (mm)=5.5; Dimension RD (mm)=-; Dimension A (mm)=34; Dimension MM (mm)=10; Dimension I (mm)=5.5; Dimension K (mm)=47; Dimension C (mm)=8; Dimension KA (mm)=M6 depth 11; Dimension B (mm)=29.5; Dimension WF (mm)=4.5; Dimension FA (mm)=18.5 (22)
