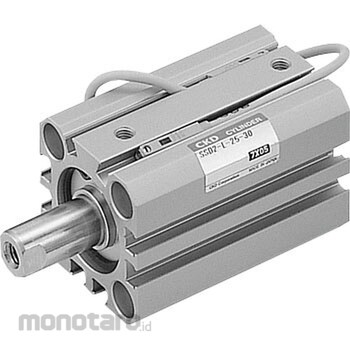

CKD Super Compact Cylinder Double Acting, Single Rod Type SSD2-63
#Grup produk P103120153
Sebelum PPN:
Rp2.499.900 - Rp3.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Working Pressure (MPa) | 1 |
|---|---|
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Allowable Energy Absorption (J) | 0.12 |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1 / 4 |
| Minimum Working Pressure (MPa) | 0.05 |
| Operating Piston Speed (mm/s) | 50 to 300 |
| Operation Method | Backward movement |
| Stroke length tolerance | +1.0 mm |
| Tube Inner Diameter (mm) | 63 |
| Type | Reverse movement, single rod type |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension I (mm)=8.7; Dimension FA (mm)=39 (42.5); Dimension N (mm)=60; Dimension O (mm)=7; Dimension D (mm)=11; Dimension K (mm)=103; Dimension WF (mm)=8; Dimension EE (mm)=Rc1 / 4; Dimension B (mm)=36 (46); Dimension KA (mm)=M10 depth 25; Dimension C (mm)=13; Dimension F (mm)=77; Dimension KK (mm)=M10 depth 15; Dimension MM (mm)=20; Dimension FB (mm)=28.5; Dimension G (mm)=84; Dimension M (mm)=17; Dimension H (mm)=23; Dimension J (mm)=14 counterbore depth 9; Dimension A (mm)=44 (54)
