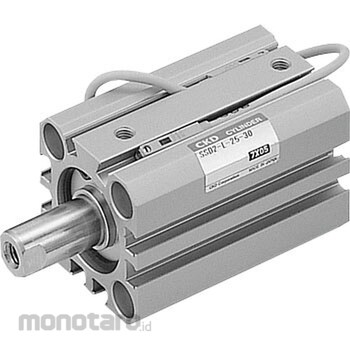

CKD Super Compact Cylinder Double Acting, Single Rod Type SSD2-50
#Grup produk P103120144
Sebelum PPN:
Rp1.999.900 - Rp2.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection aperture | Rc1 / 4 |
|---|---|
| Allowable Energy Absorption (J) | 0.1 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke length tolerance | +1.0 mm |
| Tube Inner Diameter (mm) | 50 |
| Type | Reverse movement, single rod type |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension D (mm)=10.5; Dimension MM (mm)=20; Dimension G (mm)=71; Dimension A (mm)=38.5 (48.5); Dimension KA (mm)=M8 depth 13; Dimension FA (mm)=32.5 (36); Dimension F (mm)=64; Dimension N (mm)=50; Dimension O (mm)=7; Dimension WF (mm)=8; Dimension I (mm)=6.9; Dimension KK (mm)=M10 depth 15; Dimension EE (mm)=Rc1 / 4; Dimension K (mm)=86; Dimension M (mm)=17; Dimension FB (mm)=28.5; Dimension C (mm)=10.5; Dimension H (mm)=18; Dimension B (mm)=30.5 (40.5); Dimension J (mm)=11 Counterbore depth 6.5
