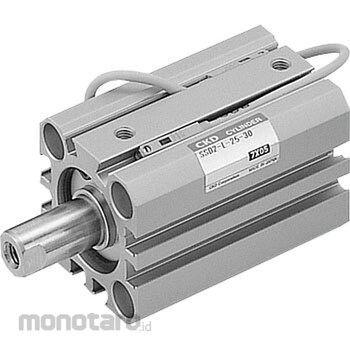

CKD Super Compact Cylinder Double Acting, Single Rod Type SSD2-12
#Grup produk P103120038
Spesifikasi
| Maximum Working Pressure (MPa) | 1 |
|---|---|
| Stroke length tolerance | +1.0 mm |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Allowable Energy Absorption (J) | 0.004 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | M5 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Tube Inner Diameter (mm) | 12 |
| Type | Reverse movement, single rod type |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Placing the cylinder switch groove on all four sides, rich stroke settings, choose Mounting Dimension B (mm)=17; Dimension K (mm)=32; Dimension D (mm)=5.5; Dimension I (mm)=3.5; Dimension KA (mm)=M4 depth 7; Dimension A (mm)=20.5; Dimension N (mm)=15.5; Dimension WF (mm)=3.5; Dimension F (mm)=25; Dimension J (mm)=6.5 Counterbore depth 3.5; Dimension KK (mm)=M3 depth 6; Dimension MM (mm)=6; Dimension M (mm)=5; Dimension C (mm)=5.5; Dimension EE (mm)=M5
