CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-50D Stroke 25

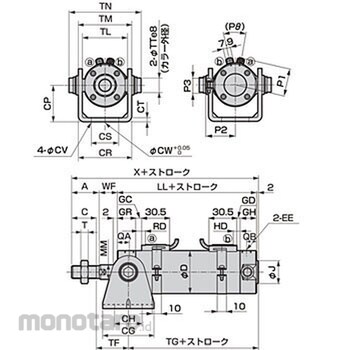

Simple design, overall length is short, easy to install work Dimension B (mm)=27; Dimension TG (mm)=79; Dimension C (mm)=32; Dimension CT (mm)=6; Dimension J (mm)=30; Dimension CR (mm)=72.4; Dimension CH (mm)=36; Dimension GR (mm)=25; Dimension TM (mm)=80; Dimension QA (mm)=15; Dimension X (mm)=150; Dimension TT (mm)=16; Dimension MM (mm)=20; Dimension D (mm)=58; Dimension CP (mm)=50; Dimension A (mm)=35; Dimension EE=Rc1 / 4; Dimension CW (mm)=20; Dimension TN (mm)=98.6; Dimension WF (mm)=23; Dimension LL (mm)=90; Dimension KK=M18 x 1.5; Dimension TL (mm)=60; Dimension CV (mm)=9; Dimension QB (mm)=12; Dimension TF (mm)=36; Dimension T (mm)=11; Dimension CS (mm)=36; Dimension CG (mm)=64; Dimension GH (mm)=22
