CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-TA-40D Stroke 75
#Grup produk P103119643
Sebelum PPN:
Rp1.999.900 - Rp4.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

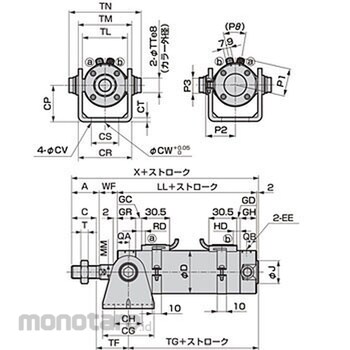

Simple design, overall length is short, easy to install work Dimension TN (mm)=81.1; Dimension TM (mm)=65.9; Dimension D (mm)=47; Dimension CS (mm)=30; Dimension MM (mm)=16; Dimension CR (mm)=58.4; Dimension T (mm)=8; Dimension QA (mm)=13; Dimension WF (mm)=20; Dimension LL (mm)=78; Dimension C (mm)=27; Dimension KK=M14 x 1.5; Dimension CT (mm)=4.5; Dimension TG (mm)=68; Dimension TT (mm)=14; Dimension CV (mm)=6.6; Dimension QB (mm)=12; Dimension J (mm)=25; Dimension B (mm)=22; Dimension X (mm)=130; Dimension A (mm)=30; Dimension GH (mm)=19; Dimension CW (mm)=10; Dimension CP (mm)=40; Dimension TF (mm)=32; Dimension CG (mm)=56; Dimension GR (mm)=20; Dimension CH (mm)=30; Dimension TL (mm)=49; Dimension EE=Rc1 / 8
