CKD Tight Cylinder Basic Single Rod Base CMK2-LB-25-300 Series
#Grup produk P103119555
Sebelum PPN:
Rp1.699.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| format | Axial foot shape (both sides) |
|---|---|
| Allowable Energy Absorption (J) | 0.308 |
| Minimum Working Pressure (MPa) | 0.1 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Cushion | Rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke (mm) | 300 |
| Stroke Length Tolerance (mm) | 0 + 2.0 (~200), 0 + 2.4 (more than 200~) |
| Tube Inner Diameter (mm) | 25 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

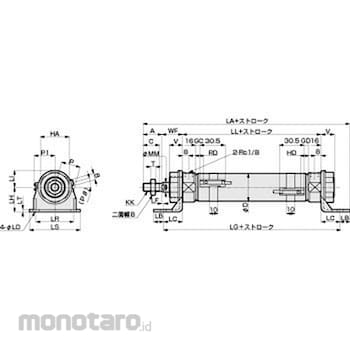

Dimension LD (mm)=7; Dimension LH (mm)=30; Dimension HA (mm)=35; Dimension LF (mm)=0; Dimension LC (mm)=23; Dimension LI (mm)=20; Dimension V (mm)=16; Dimension LA (mm)=150; Dimension C (mm)=20; Dimension D (mm)=26.4; Dimension LS (mm)=62; Dimension WF (mm)=23; Dimension KK (mm)=M10 x 1.25; Dimension MM (mm)=12; Dimension LB (mm)=12; Dimension LT (mm)=3.2; Dimension A (mm)=23; Dimension LR (mm)=46; Dimension LG (mm)=115; Dimension LL (mm)=69; Dimension T (mm)=6; Dimension B (mm)=17
