CKD Tight Cylinder Basic (Single Rod) Base 2-LB
#Grup produk P103119476
Sebelum PPN:
Rp1.199.900 - Rp1.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Minimum Working Pressure (MPa) | 0.1 |
|---|---|
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Cushion | Rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Working Fluid | Compressed air |
| format | Axial foot shape (both sides) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

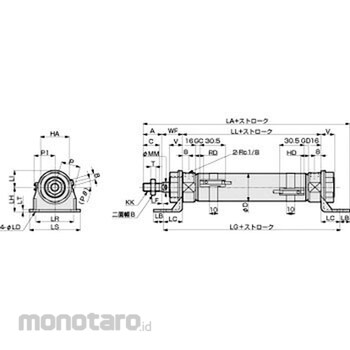

Dimension T (mm)=5; Dimension LR (mm)=30; Dimension LH (mm)=25; Dimension LI (mm)=15; Dimension LC (mm)=18; Dimension KK (mm)=M8 x 1.0; Dimension LB (mm)=10; Dimension HA (mm)=26; Dimension LT (mm)=3.2; Dimension LS (mm)=44; Dimension D (mm)=21.4; Dimension LD (mm)=6; Dimension B (mm)=13; Dimension LF (mm)=6; Dimension LL (mm)=66; Dimension MM (mm)=10; Dimension C (mm)=18; Dimension A (mm)=20; Dimension LG (mm)=102; Dimension WF (mm)=24; Dimension V (mm)=14; Dimension LA (mm)=138
