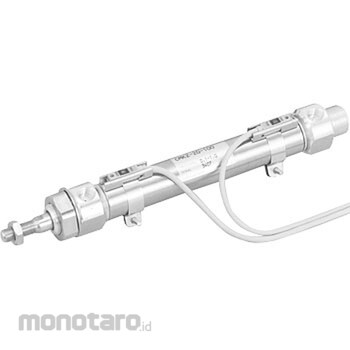

CKD Tight Cylinder Basic (Single Rod) Base CMK2-00-32-25
#Grup produk P103119218
Sebelum PPN:
Rp1.199.900 - Rp2.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| format | Basic form |
|---|---|
| Operation Method | Backward movement |
| Maximum Working Pressure (MPa) | 1 |
| Allowable Energy Absorption (J) | 0.424 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Rc1 / 8 |
| Cushion | Rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke (mm) | 25 |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Tube Inner Diameter (mm) | 32 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension V (mm)=16; Dimension WF (mm)=23; Dimension B (mm)=17; Dimension D (mm)=33.6; Dimension F (mm)=36; Dimension X (mm)=131; Dimension MN (mm)=10; Dimension LL (mm)=69; Dimension MB (mm)=M26 x 1.5; Dimension MM (mm)=12; Dimension MO (mm)=5; Dimension HA (mm)=35; Dimension A (mm)=23; Dimension XF (mm)=46; Dimension U (mm)=34; Dimension C (mm)=20; Dimension T (mm)=6; Dimension K (mm)=14; Dimension KK (mm)=M10 x 1.25
