CKD Tight Cylinder Basic (Single Rod) Base CMK2-00-40-150
#Grup produk P103119193
Sebelum PPN:
Rp1.799.900 - Rp4.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Operation Method | Backward movement |
|---|---|
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Minimum Working Pressure (MPa) | 0.1 |
| Connection aperture | Rc1 / 8 |
| Allowable Energy Absorption (J) | 0.639 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Cushion | Rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Stroke (mm) | 150 |
| Stroke length tolerance | 0 + 2.0 mm (~ 200), 0 + 2.4 mm (more than 200 ~) |
| Tube Inner Diameter (mm) | 40 |
| Working Fluid | Compressed air |
| format | Basic form |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

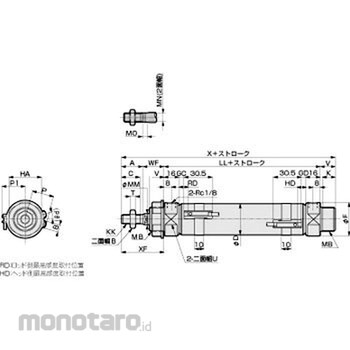

Dimension A (mm)=25; Dimension T (mm)=7; Dimension HA (mm)=35; Dimension MO (mm)=6; Dimension D (mm)=41.6; Dimension HD (mm)=10.5; Dimension XF (mm)=48; Dimension P1 (mm)=29.5; Dimension V (mm)=16; Dimension GD (mm)=6.5; Dimension MB (mm)=M26 x 1.5; Dimension X (mm)=137; Dimension GC (mm)=7; Dimension C (mm)=22; Dimension WF (mm)=23; Dimension RD (mm)=11.5; Dimension U (mm)=43; Dimension LL (mm)=73; Dimension B (mm)=19; Dimension KK (mm)=M12 x 1.5; Dimension F (mm)=45; Dimension P (mm)=28.3; Dimension MM (mm)=14; Dimension MN (mm)=12; Dimension K (mm)=14
