CKD Tight Cylinder Basic Single Rod Base CMK2-00-20-150 Series
#Grup produk P103119087
Sebelum PPN:
Rp1.199.900 - Rp3.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection aperture | Rc1 / 8 |
|---|---|
| Working Fluid | Compressed air |
| Minimum Working Pressure (MPa) | 0.1 |
| Allowable Energy Absorption (J) | 0.166 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Cushion | Rubber cushion |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Piston Speed (mm/s) | 50 to 500 |
| Operation Method | Backward movement |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Stroke (mm) | 150 |
| Stroke Length Tolerance (mm) | 0 + 2.0 (~200), 0 + 2.4 (more than 200~) |
| Tube Inner Diameter (mm) | 20 |
| format | Basic form |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

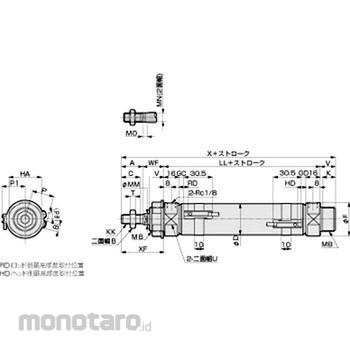

Dimension KK (mm)=M8 x 1.0; Dimension B (mm)=13; Dimension MN (mm)=8; Dimension MB (mm)=M18 x 1.5; Dimension A (mm)=20; Dimension LL (mm)=66; Dimension WF (mm)=24; Dimension RD (mm)=8; Dimension D (mm)=21.4; Dimension X (mm)=124; Dimension U (mm)=24; Dimension F (mm)=28; Dimension HD (mm)=7; Dimension T (mm)=5; Dimension MO (mm)=5; Dimension C (mm)=18; Dimension P1 (mm)=19.5; Dimension K (mm)=12; Dimension HA (mm)=26; Dimension XF (mm)=44; Dimension V (mm)=14; Dimension P (mm)=17.3; Dimension GD (mm)=3; Dimension GC (mm)=4; Dimension MM (mm)=10
