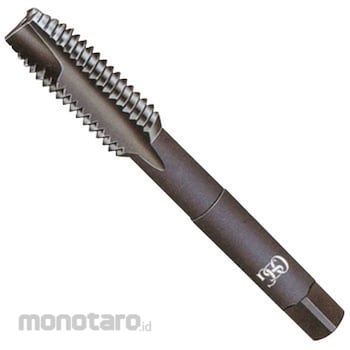

OSG Point Tap (General Homotreatment) (EX-H-POT)
#Grup produk P103063089
Kondisi Barang:
Spesifikasi
| Chamfer | 5P |
|---|---|
| Surface Processing | Homo treatment |
| Angle Width K (mm) | 6.5 |
| Overall Length L (mm) | 82 |
| Angle Length Lk (mm) | 9 |
| Screw Length (mm) | 29 |
| Accuracy notation | STD+1 |
| Chamfer Lcf | 5P |
| EDP No. | 16740 |
| Lower Neck Part L1 (mm) | 48 |
| Material | High vanadium high speed (high speed steel) HSSE |
| Number of Flutes | 3 |
| Pitch (mm) | 1.75 |
| Precision | OH5 |
| Processing | For a through hole |
| Screw Diameter | M12 |
| Screw Length Lc (mm) | 29 |
| Screw Type | M |
| Shank Diameters d (mm) | 8.5 |
| Shape | M8 or less will be the protruding center. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
For general purpose, it is suitable for work material in which chips are continuous in coil shape in carbon steel, alloy steel and nonferrous metal (for through holes). Homo processing has been applied.Dokumentasi Produk
