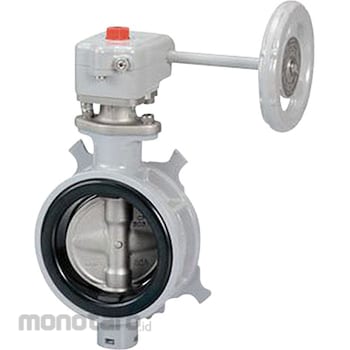

Kitz 10K Aluminum Butterfly Valve (Gear, Short Neck) (G-10BJSUE Series)
#Grup produk P103052463
Spesifikasi
| Material (stem) | SUS403/SUS410 |
|---|---|
| Material (disk) | SCS14A |
| Material (stem bearing) | PPS |
| Gear unit model | NO.0 |
| Material (Sheet) | EPDM |
| Material (O ring) | EPDM |
| Body Material | ADC12 |
| Call of pipe | 80A(3B) |
| Class | 5K/10K |
| Dimension D (mm) | Φ79 |
| Dimension D1 (mm) | 100 |
| Dimension F (mm) | 37 |
| Dimension H (mm) | 167 |
| Dimension H1 (mm) | 118 |
| Dimension H2 (mm) | 84 |
| Dimension L (mm) | 46 |
| Dimension L1 (mm) | 122 |
| Dimensions d (mm) | 122 |
| Maximum Working Pressure (MPa) | 0.98[10] |
| Nominal Diameter A | 80 |
