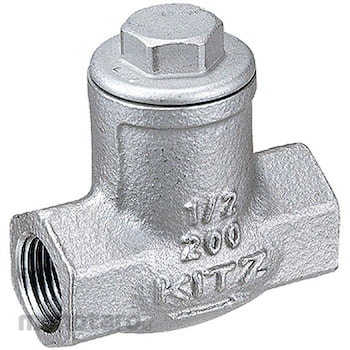

Spesifikasi
| Material (disk) | SCS13A/SUS304 |
|---|---|
| Cap Material | SCS13A/SUS304 |
| Class | 10K |
| Dimension L (mm) | 55 |
| Dimension H (mm) | 50 |
| Body Material | SCS13A |
| Connection Method | The screw-shaped |
| Fluid Used | Water, oil, air, steam, gas |
| Handle Shape | Without handle |
| Maximum Working Pressure (MPa) | 1.4 (+120°C below the static water flow), 1.1 (+150°C below the steam, air, non-flammable gas, oil), 1.0 (+180°C below the steam, air, non-flammable gas, oil) |
| Nominal Diameter A | 10 |
| Nominal Diameter B | 3/8 |
| Shape | straight |
| TRUSCO Number | 163-7665 |
| Type | stainless |
| Valve Type | Chuck valve |
