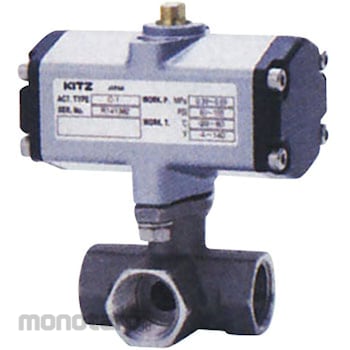

Kitz Stainless Steel Small Air Pressure Three-Way Ball Valve L Port (Reduce Toba)
#Grup produk P103051923
Spesifikasi
| Material (O ring) | FKM |
|---|---|
| Class | 10K |
| Dimension E (mm) | 86 |
| Ball Material | SUS316 |
| Body Material | SCS14A |
| Bore Diameter | Redeyusutoboa |
| Connection Method | The screw-shaped |
| Fluid Used | Water, oil, air |
| Material (ball seat) | Carbon fiber input PTFE |
| Material (stem) | SUS316+Cr plating |
| Maximum Working Pressure (MPa) | 0.98 (80°C below the water, oil, air) (freezing), 0.49 (100°C or less of water, oil, air) (freezing) |
| Method | (Floating) 1/2B-1 1/2B, (trunnion-mounted) 2B, three-way Nimen sheet, L port |
| Shape | Horizontal three directions |
| Type | Ball valve |
| Type Of Actuator | C-1 type (double actuation) |
