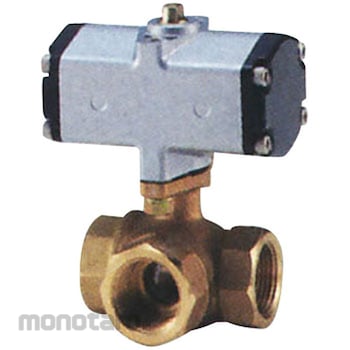

Kitz Bronze Small Pneumatic Three-Way Ball Valve L Port (Reduce Bore)
#Grup produk P103051905
Sebelum PPN:
Rp3.499.000 - Rp6.999.000
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material (ball seat) | PTFE |
|---|---|
| Material (O ring) | FKM |
| Cap Material | C3771BE |
| Class | 10K |
| Ball Material | K metal+Ni-Cr-plated |
| Body Material | CAC406 |
| Bore Diameter | Redeyusutoboa |
| Connection Method | The screw-shaped |
| Fluid Used | Water, oil, air |
| Material (stem) | C6782BD+Cr plating |
| Maximum Working Pressure (MPa) | 0.98 (80°C below the water, oil, air) (freezing), 0.49 (100°C or less of water, oil, air) (freezing) |
| Method | (Floating) 1/4B-1 1/4B, (trunnion-mounted) 1 1/2B, 2B, three-way Nimen sheet, L port |
| Shape | Horizontal three directions |
| Type | Ball valve |
