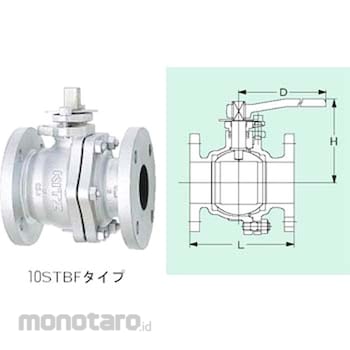

Kitz Ball (10K) Valve (10STBF Series)
#Grup produk P103051765
Spesifikasi
| Thread Diameter | M12 |
|---|---|
| Nominal Diameter | 3/4B |
| Call of pipe flange | 20A(3/4B) |
| Class | 10K |
| Dimension D1 (mm) | 130 |
| Dimension L (mm) | 117 |
| Dimension H (mm) | 109 |
| Bore Diameter | Full bore |
| Connection Method | Pipe flanges |
| Dimension C (mm) | 75 |
| Dimension D (mm) | Φ20 |
| Dimensions d (mm) | 100 |
| Dimensions t (mm) | 14 |
| Fluid Used | Water, air, gas |
| Handle Shape | Lever type |
| Number of bolt holes | 4 |
| Shape | straight |
| Type | Ductile |
| Valve Type | Ball valve |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- When applying the High Pressure Gas Safety Act, the air and gas will be 2.4MPa (-5°C to +220°C). _x000D_- When used beyond 260°C, it is necessary to change the material of the gasket, so please check separately.
