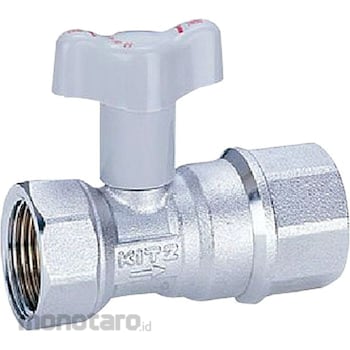

Kitz 10K Built-In Type Water Supply Ball Valve (Taper Female Thread X Taper Female Screw) (S25N Series)
#Grup produk P103048415
Spesifikasi
| Cap Material | C3771BE |
|---|---|
| Class | 10K |
| Dimension L (mm) | 73 |
| Dimension H1 (mm) | 66 |
| Dimension H (mm) | 51 |
| Ball Material | C3771BE |
| Connection Method | The screw-shaped |
| Dimension D1 (mm) | 40 |
| Dimension L1 (mm) | 46.5 |
| Fluid Used | water |
| Handle Shape | T-shaped |
| Maximum Working Pressure (MPa) | 0.98 (0°C - +80°C hot and cold water) |
| Nominal Diameter (mm) | 15 |
| Nominal Diameter A | 15 |
| Nominal Diameter B | 1/2 |
| Shape | straight |
| Standard | Face-to-face: Kitts standard, tube connection: JISB0203, wall thickness: Japan Water Works Association standards |
| Temperature Range (°C) | 0 - +80 (primary side: normal temperature, the secondary side during reverse flow: +80 or less) |
| Valve Type | Ball valve |
