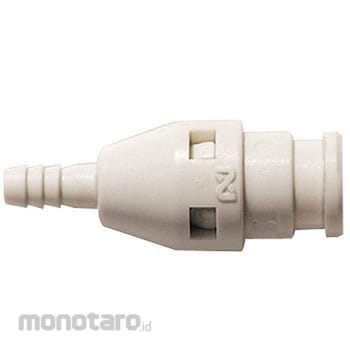

NITTO KOHKI Cube Coupler Plug (for Tube Mounting)
#Grup produk P102830192
Spesifikasi
| Socket or Plug | plug |
|---|---|
| Valve Structure | With valve |
| Pressure resistance | 1.5MPa [15kgf/cm2) |
| Fluid | Air, water |
| Installation Shape | For tube mounting |
| Material (Seal) | Nitrile rubber |
| Dimension A (mm) | 10 |
| Dimension Bp (mm) | 2.5 |
| Dimension Hp (mm) | 14 |
| Dimension Lp (mm) | 36 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature Range (°С) | -20 to +60 |
| Opponent Tube Size (mm) | For 4 (inner diameter) |
| Body Material | Polyacetal resin |
| Dimensions t (mm) | 4.8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Super lightweight made of resin.Compact design allows for space saving.UseableFor low pressure, compact, lightweight, pneumatic, medical, for physics and chemistry equipment pipingUlasan Produk
