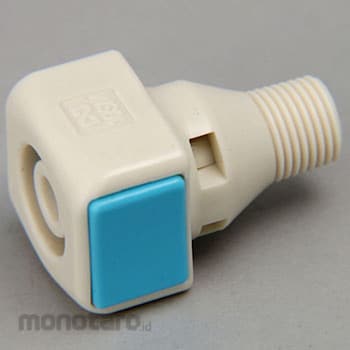

NITTO KOHKI Cube Coupler Socket (for Female Thread Installation)
#Grup produk P102830165
Spesifikasi
| Pressure resistance | 1.5MPa [15kgf/cm2) |
|---|---|
| Socket or Plug | Socket |
| Opponent Mounting Size | Rc1/8 |
| Valve Structure | With valve |
| Installation Shape | For female thread mounting |
| Fluid | Air, water |
| Material (Seal) | Nitrile rubber |
| Dimension Ls (mm) | 31.5 |
| Dimension T (inch) | R 1/8\" |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature Range (°С) | -20 to +60 |
| Body Material | Polyacetal resin |
| Dimension D (mm) | 20.3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Super lightweight made of resin.Compact design allows for space saving.UseableFor low pressure, compact, lightweight, pneumatic, medical, for physics and chemistry equipment pipingUlasan Produk
