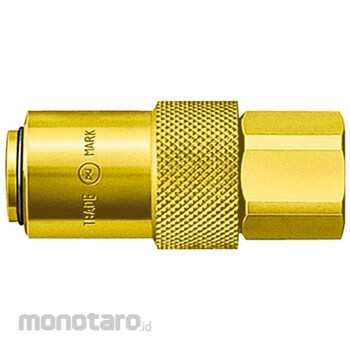

NITTO KOHKI Mold Coupler Socket (for Male Screw Mounting)
#Grup produk P102829044
Spesifikasi
| Pressure resistance | 1.5MPa [15kgf/cm2) |
|---|---|
| Socket or Plug | socket |
| Material (Seal) | Nitrile rubber |
| Screw Diameter T | Rc1/4 |
| Type | General purpose type, mold cooling water outlet fitting |
| Installation Shape | Female thread |
| Fluid | Water, hot water |
| Opponent Mounting Size | R1/4(PT1/4) |
| Dimension A (mm) | 29 |
| Dimension C (mm) | 14.5 |
| Dimension Ls (mm) | 46.5 |
| Dimension N (mm) | 16.8 |
| Dimensions Hs (mm) | Hex 17 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature Range (°С) | -20 to +80 |
| Body Material | brass |
| Dimension D (mm) | 18.5 |
| Dimensions d (mm) | Ø 21 |
| Maximum Tightening Torque (N m) | 9 |
| Maximum Tightening Torque (kgf/cm) | 92 |
| TRUSCO Number | 113-2750 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Fluid flow direction: Fluid can flow from either socket side or plug side.- Vacuum application compatibility: It can not be used for vacuum application both when single unit and when connecting.
Feature
Mold exchanging single thoroughly pursue! It is strong against rust, abundant variations.Ulasan Produk
