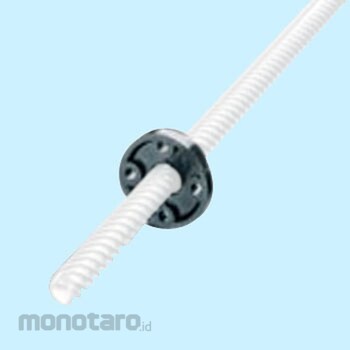

THK Change Nut
#Grup produk P102569948
Spesifikasi
| Material | Oil-impregnated plastic |
|---|---|
| Compatible | Axis: CT8T |
| Allowable Torque (N m) | 3.24 (at contact pressure 9.8 N/mm² |
| Dimension B (mm) | phi 3.4 |
| Dimension R (mm) | 0.8 |
| Dynamic allowable thrust (N) | 863 (at contact pressure 9.8 N/mm²) |
| Flange Outer Diameter (Φmm) | 28 |
| Flange Static Permissible Load (N) | 1800 |
| Flange Thickness (mm) | 4 |
| Length L (mm) | 16 |
| Mass (g) | 5 |
| Outer Diameter Tolerance (mm) | 0-(-0.1(h9)) |
| Outer Diameter d (mm) | 15 |
| P.C.D (mm) | 21 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Linear motion can be rotated, rotational motion can be converted to linear, efficiency of 70%. By pushing the multiple screw shaft with a cylinder or the like, torque is easily generated. It is also ideal for fast forward mechanisms.
Warning
* Because the delivery date changes according to the order status, please confirm at the time of ordering Ulasan Produk
