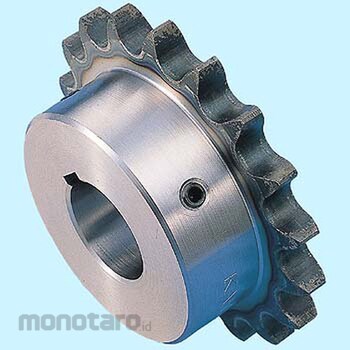

Katayama Chain FBN Finished Bore Sprocket New Jis Key Groove Specification
#Grup produk P102526864
Spesifikasi
| Material | Carbon steel for machine structural use |
|---|---|
| Number of Gears | 9.0 |
| Type | FBN60B |
| Hardness | Tooth tip induction hardening |
| Boss BD | 43mm |
| Boss Length BL | 32mm |
| Chain Pitch | 19.05 mm |
| Dimension A (mm) | 6 |
| Dimension S | 8.0mm |
| Face Width | 11.7mm |
| Keyway (b x t2) | 6x2.8bxt2mm |
| Outside | 63φ mm |
| Pitch | 55.70φ mm |
| Roller Outside | 11.91mm |
| Roller link Inside Width | 12.7mm |
| Set Screw | 6m |
| Using Chain | No.60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
FBN sprocket is a finished sprocket with KANA standard NK sprocket shaft hole, key groove and set screw processing. The quality is stable with high precision by the intensive production system with excellent equipment and thorough quality control .. Statistics More than 1900 variations match the needs of users and reduce the total cost .. FBN (New JIS processing) is processing based on the new JIS standard (JIS B 1301-1976) parallel key .. The tolerance of the key width is H7.
