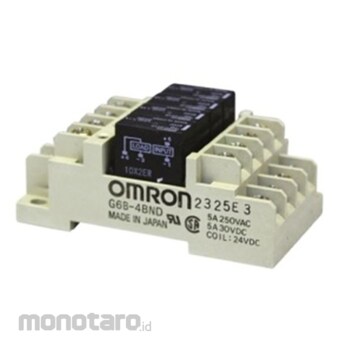

OMRON Terminal Relay Philip Screw Terminals
#Grup produk P102126943
Spesifikasi
| Item Code | G6B41037M |
|---|---|
| Ambient Humidity (%RH) | 45 to 85 |
| Coil Rated Voltage (V) | DC24 |
| Coil Resistance (ohm) | 2880 (per relay point) |
| Contact Configuration | 1a×4 (standard form) |
| Contact Resistance (miliΩ) | 100 or less (per relay, DC5V 1A) |
| Electrical Durability | 100,000 times or more (rated load, switching frequency 1800 times/h) (per relay) |
| Failure Rate P Level (V-mA) | DC5-10 (per relay, reference value) (reference value: when opening/closing frequency is 120 times/min) |
| Impact Resistance Durability (m/s²) | 1000 |
| Inductive Load (V-A) | AC250-, DC30-2, per relay point (cosΦ=0.4, L/R=7ms) |
| Installation Method | Commonly used for DIN rail mounting and screw mounting |
| Insulation Resistance (MΩ) | 1000 or more (at DC500V megger, per relay) |
| Kinds | terminal relay |
| Maximum Allowable Voltage (V) | 130% (per relay point) Maximum allowable voltage fluctuation range of relay coil operation power supply |
| Maximum Switching Capacity (VA/W) | Resistive load (cosΦ=1): 1250-150 Inductive load (cosΦ=0.4 L/R=7ms): 500-60 Reference value per relay point |
| Maximum Value of Contact Current (A) | Resistive load (cosΦ=1): 5 Inductive load (cosΦ=0.4 L/R=7ms): 5A per relay point |
| Maximum Value of Contact Voltage (V) | Resistive load (cosΦ=1): AC380, DC125 Inductive load (cosΦ=0.4 L/R=7ms): AC380, DC125 per relay point |
| Maximum switching capacity | Resistive load (cosΦ=1): 1250VA 150W Inductive load (cosΦ=0.4 L/R=7ms): 500VA 60W Reference value per relay point |
| Mechanical Durability | More than 50 million times (opening/closing frequency 18,000 times/h) (per relay) |
| Operating Ambient Temperature (°C) | -25 to +55 (no freezing) |
| Operating Time (ms) | 10 or less (actual value: approx. 3ms) (per relay, +23℃) |
| Operating Voltage (%) | 80 or less (per relay, ambient temperature +23℃) |
| Power Consumption (mW) | Approximately 200 (per relay point) |
| Rated Current (A) | Resistive load (cosΦ=1): 5, Inductive load (cosΦ=0.4 L/R=7ms): 5 |
| Rated Current (mA) | 10.7±10% (coil temperature +23℃, per relay, including terminal LED) |
| Rated Voltage (V) | DC24 |
| Recovery Time (ms) | 15 or less (actual value: approx. 4) (per relay, ambient temperature +23℃) |
| Resistive Load (V-A) | (cosΦ=1): C250-5, DC30-5 |
| Return Voltage | 10% or more (per relay point) |
| Shock Resistance Malfunction (m/s) | 100 |
| Standard | UL, CSA standard certified |
| Storage Temperature Range (°C) | -25 to +55 (but no freezing) |
| Terminal Shape | screw terminal |
| Vibration Resistance (Durability) | 10 to 55Hz, single amplitude 0.75mm (double amplitude 1.5mm) (per relay point) |
| Vibration Resistance (Malfunction) | 10 to 55Hz, single amplitude 0.75mm (double amplitude 1.5mm) (per relay point) |
| Withstand Voltage (V/minute) | Between contacts of the same polarity: AC1000 50/60Hz, between contacts of different polarity: AC2000 50/60Hz, between contacts and coils: AC2000 50/60Hz, between coils of different polarity: AC250 50/60Hz, per relay |
| types | terminal relay |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Terminal Relay Philip Screw Terminals
