Usage:
Connection between screw and tube

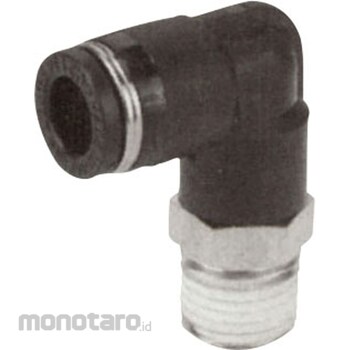

PISCO Tube Fitting Elbow
#Grup produk P102034613
Spesifikasi
| Specification | Taper screw for pipe: Sealock processing |
|---|---|
| Material | Metal body: brass + nickel plated Resin body: polybutylene terephthalate (PBT) Release ring: polyacetal (POM) |
| Weight (g) | 37 |
| Form | Elbow |
| Maximum Working Pressure (MPa) | 1.0 |
| Dimensions a (mm) | 12 |
| Dimensions e (mm) | 22.7 |
| Screw Dimensions | R3/8 |
| Dimensions b (mm) | 32.8 |
| Dimensions c (mm) | 18.2 |
| Fluid | Air, water |
| Compatible Tube Outer Diameter D (mm) | 8 |
| Dimensions p (mm) | 14.5 |
| Vacuum Pressure (kPa) | -100 |
| Opposite Side H (mm) | 17 |
| RoHS Directive | Available |
| Dimension L (mm) | 33.7 |
| Effective Section Area (mm²) | 16.5 |
| Operating Temperature Range (°C) | 0 - 60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
When fluid used is water, please keep the surge pressure under the maximum allowable working pressure during use.Ordinary tap water can be used.Please attach the insert ring.Ulasan Produk
