Can be widely used for general industry.
The standard belt has conductivity. (Electrical resistance value: 6 MΩ or less)
To prevent the belt from shifting to one side, the resistor uses S twist and Z twist alternately.
Mitsuboshi Timing Belt Xl Type (Chloroprene Rubber) 150 Series
#Grup produk P101521220
Spesifikasi
| Belt Pitch Circumference (mm) | 386.08 |
|---|---|
| Belt Type | XL |
| Minimum Pulley Diameter (mm) | 16 |
| Operating Temperature Range (°C) | -30 to + 90 |
| Belt Material | Chloroprene rubber |
| Belt Nominal Length (inch) | 15.2 |
| Belt Nominal Width | 50 |
| Belt Width (mm) | 12.7 |
| Maximum Speed (m/s) | 30 |
| Number of Teeth | 76 |

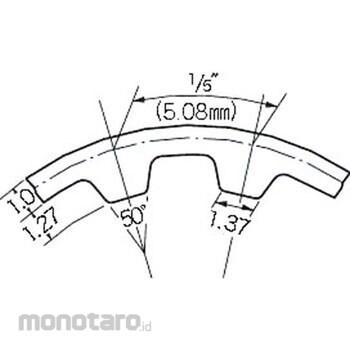

| Tooth pitch (mm) | 5.08 |
| Type | G Type, standard,Timing Belt |
