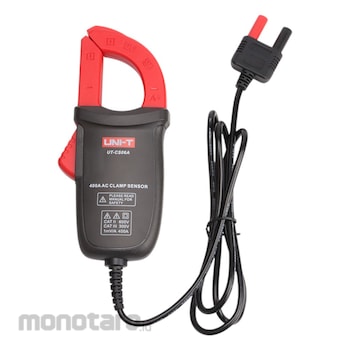

UT-CS06A 400A AC Current Clamp is a current entry-level sensor for AC Current measurement of multimeter/data logger.
It suits most UNI-T multimeters and features a small-sized and convenient-to-use design, which is an ideal tool to extend the current ranges for the Multimeters.
UNI-T AC Current Clamp Sensor UTCS06A 1unit
Rp676.989 Rp609.900
Spesifikasi Produk
| Model Number | UTCS06A |
|---|---|
| Unit | 1unit |
| Dimensions (mm) | 158x65x33 |
| AC Current (A) | 1-400 |
| Accuracy (%) | ±2.5%±0.5A@50-60Hz, ±2.8%±0.5A@60-400Hz |
| Jaw Opening | 28 |
| Output Ratio (mV/A) | 1 |
| Wire Length (m) | 1.1 |
| True RMS | Depends on the Multimeter |
| Response Time | Depends on the Multimeter |
| Frequency (Hz) | 50 ~400 |
| Accuracy | Depends on the Multimeter |
| Power Supply | No need battery |
| Drop Test (m) | 1 |
| Overvoltage Category | CAT III 300V, CAT II 600V |
| Certificates | CE, UKCA |
| Waveform Display | Adaptable Oscilloscope |
| Berat (Kg) | 1.8 |
| Tanggal Produk Terdaftar | 10 November 2025 |
| Terakhir Diperbaharui | 11 November 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features of UT-CS06A 400A AC Current Clamp SensorCertificates: CE, UKCA
- Compact design, easy to operation
- 400A AC current measurement
- AC A Frequency: 50 Hz to 400 Hz
- Output ratio: 1mV/A
- Clamp Jaw size: 28mm
- Suitable for most UNI-T multimeters
- Drop protection: 1m
- Overvoltage category: CAT Ⅲ 300V/CATII 600V
