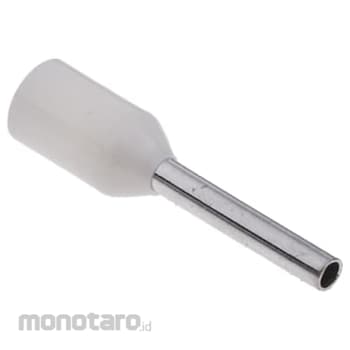

RS PRO Insulated Crimp Bootlace Ferrule White 8x1.3mm 1pc

Name: RS PRO Insulated Crimp Bootlace Ferrule White 8x1.3mm 1pc
Brand: RS PRO
SKU: S048011136
Price: 121989 IDR
Availability: InStock

0 Ulasan

#Nomor SKU S048011136

Wishlist

Spesifikasi Produk

Unit	1pc
Insulation	Insulated
Colour	White
Pin Diameter (mm)	1.3
Number of Entries	1
Pin Length (mm)	8
Maximum Wire Size (AWG)	22
Insulation Material	Nylon
Overall Length (mm)	14
Maximum Wiring Size (mm²)	0.5
Berat (Kg)	0.1
Tanggal Produk Terdaftar	16 September 2025
Terakhir Diperbaharui	18 September 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

RS PRO Insulated French Colour Coded Bootlace Ferrules
From RS Pro a range of high-quality French colour coded bootlace ferrules (also known as cord end terminals) for providing a clean end termination to multi-stranded wires. These reliable wire ferrules ensure that you have a positive connection when connecting wires to terminal blocks and captive terminals.
Note
Length quoted is Pin Length
Applications
Bootlace ferrules are used on multi-stranded wires that are being inserted into screw terminals and terminal blocks. Applications include consumer units, circuit breakers, electrical control panels and any equipment where there is a requirement for a multi-stranded wire connection.

Feature

Features and Benefits
• Excellent electrical connection
• Reduces short circuits
• Colour coded collar for easy ferrule size identification
• Nylon insulated collar for reduced leakage, creepage and gas intrusion
• Tin plated copper tube for excellent conductivity
• Crimped terminal can be repeatedly inserted and removed without degrading end of the wire
